| 產品特色與生產要素 Product Feature & Key Factors of Production |
| |
 |
| | 模內標籤之優點 |
| 模內標籤為高溫一體成型，美觀、防偽、簡化流程(自動貼標之簡化)…等之現代化技術，要成功需要 |
| 1. 標籤材料技術。 2. 印刷技術。 3. 模具設備技術。 等三大主體之配合才能達成。 |
| | 構成生產模內標籤之五大要素 |
| 1. 注塑機。 2. IML模具。 3. IML機械手。 4. IML供標機。 5. 標籤(材質/印刷技術)。 |
| |
|
| 注塑用標籤 Label for Injection Molding |
加工溫度
Finishing Temperature |
糊劑
Adhesive Coating |
用途介紹
Usage |
| 高High |
不使用No |
飲料杯、餅乾盒、食品盒等Drinking Bottle/Cup, Cookie Box, Food Container,etc |
| 吹塑用標籤 Label for Blow Molding |
| 低Low |
使用Yes |
日化品、機油桶、生技食（藥）品罐等Home & Personal Care Product, Motor Oil Bottle, Chemical Container,etc |
|
| |
|
| |
|
| 模內標籤加工流程 Manufacturing Process of In Mold Label (IML) |
| |

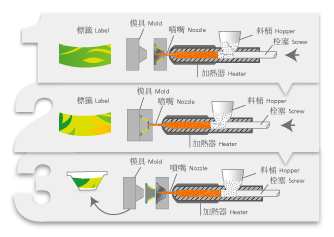

| | 注塑成型流程 Injection Molding Process |
| |
標籤底紙→UV平版或UV Flexo印刷（上光或無）→嶄型→置入模具→射出成型→脫模
220-240℃(PP) / 190-220℃(PE) |
|
| |
Substrates → UV Offset or UV Flexo Printing (with or without Varnish) → Die Cutting → Pinned in the Mold → Injection Molding → Demold |
|

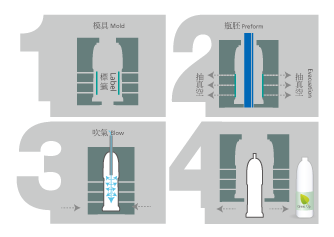

| | 吹塑成型流程 Blow Molding Process |
標籤底紙→背面上糊劑→正面印刷（UV平版或UV Flexo印刷後）上光或無→嶄型→置入模具→吹瓶成型→脫模
160-220℃ |
|
| Substrates → Adhesive coating on back side → Printing on front side (UV Offset or UV Flexo Printing) with or without Varnish → Die Cutting → Pinned in the Mold → Blow Molding → Demold |
|
| 產品優劣勢分析 Product Comparison |
|
| |
|
| 項目 List |
不干膠標籤 Adhesive Label |
模內標籤 In Mold Label (IML) |
|
|
| |
◎容易產生皺摺或氣泡
◎不具耐候性，容易產生脫落與異常翹起
◎ Prone to wrinkles or bubbles
◎ Non-weather resistance, prone to fall off and tilt |
|
|
| |
◎ 呈現出自然和諧的視覺效果。外觀新穎、 優美，具質感與精緻感
◎ 色彩亮麗明顯優於紙張類材料
◎ 防水防油，不起泡 ◎ 黏合性佳，不易霉變、脫落，可長時 間保持完整和美觀
◎ Showing the visual effects of natural harmony. The appearance of novel and elegant, with a sense of delicate brand quality.◎ Bright colors better than paper-like material
◎ Waterproof, anti-oil and non-foaming ◎ The label becomes a part of bottle or container, the- refore it allows to keep excellent appearance without peel off and moldy problem |
|
|
防偽能力
Security |
差
Weak |
優
Excellent |
|
|
| |
需二次加工（人力或貼標機）之時間及成本
Two-Steps Process (labor or labelling machine) take more time and cost |
|
|
| |
一體成型，流程簡化並自動化，節省勞動力
Single-step process, process simplification and automation, labor savings |
|
|
| |
環保性Environmental Protection |
|
|
| |
◎ 標籤貼合前，需要上膠製程
◎ 回收時須再處理
◎ Self adhesive coating is needed before Labelling
◎ Multi-step processing of material to be recycled |
|
|
| |
◎ 無需背膠製程，降低樹脂用量，製程環保 ◎ 瓶身與標籤整合成100% 可回收之容器， 再利用率更高
◎ Without gum manufacturing process, reduce the amount of resin, eco-friendly process
◎ A higher recyclable rate was achieved through the integration of the bottle and label as a 100% recyc- lable vassel. |
|
|
| |
|
|
|
| |
| |
|
| 中國發明專利 Chinese Invention Patent |
|
